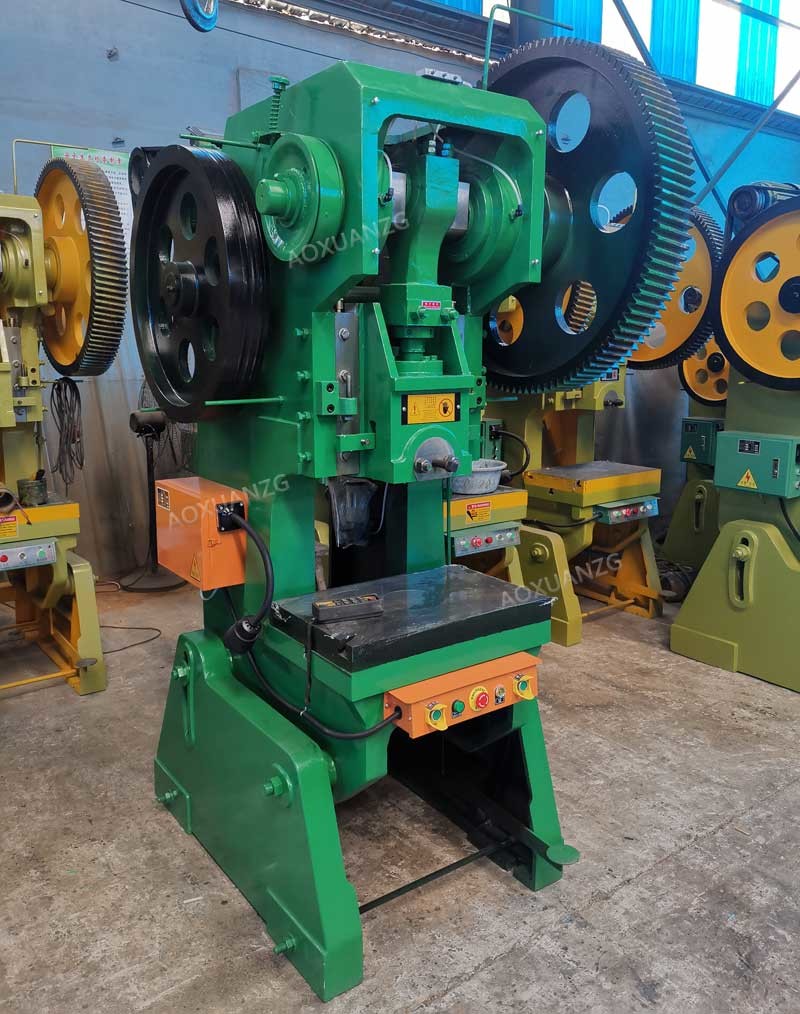

40T Angle Code Production Line Servo Feeder Punching Machine With Mold

  • 1
  • 2
  • 3

Brand Name : AOXUANZG

Model Number : J23-40T

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : $5050

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500sets/Year

Delivery Time : 20-30 days

Packaging Details : Standard export packing

Pressure : 400KN

Size : 2500*1200*1500mm

Net Weight : 2200kg

Motor : 3kw

Packing type : Export wooden packing

Color custimized : Green and black

Contact Now

40T Angle Code Production Line Servo Feeder Punching Machine With Mold For Sale


The press is applicable to compression of plastic materials. For example, powder and plastic products forming and heat/cool metal extruction, stamping, bending, edge-folding, straightening, depressed mounting and etc.

Technical Parameters:
Model J23-6.3T J23-12T J23-16T J23-25T J23-40T J23-63T J23-80T J23-100T J23-125T
Nominal Pressure(KN) 63 120 160 250 400 630 800 1000 1250
Nominal Pressure Stroke(mm) 1.5 2 2 2.5 4 4 5 5 5
Slide stroke(mm) 40 50 60 70 100 100 120 120 140
Stroke frequency (times/min) 150 140 100 70 55 56 45 50 40
Die Set Height (mm) 120 130 170 200 240 275 300 320 340
Die Height Adjustment 30 40 40 40 56 63 70 80 90
Worktable Size ( front-back) (mm) 210 220 290 350 400 450 480 580 700
Worktable Size ( Left-Right)(mm) 350 370 460 560 680 680 780 910 1100
Max Tilt Angle 20 20 30 15 25 25 25 20 20
Die Handle Hole Size (mm) 25 30 35 40 50 50 60 60 60
Thickness of the Worktable 30 35 45 50 70 80 90 110 120
Worktable Hole Diameter 70 90 120 130 135 140 160 160 170
Power(KW) 0.75 1.5 1.5 2.2 3 4 5.5 7.5 11
Column Spacing (mm) 140 170 190 240 250 280 320 390 400
Dimensions (mm) 400*500*1300 600*530*1500 760*650*1600 900*700*2000 1400*1000*2300 1700*1150*2500 2000*1300*2650 1950*1400*2850 2300*1500*3000
Throat Depth (mm) 120 130 170 190 250 260 290 330 330

Details:

The machine body have been heat-treated to eliminate internal stress. At the same time, they have been processed on our CNC floor boring and milling machine. the bottom surface of the worktable, the side of the slider guide rail, and the crank sleeve are processed integrally to ensure the initial accuracy of assembly.

40T Angle Code Production Line Servo Feeder Punching Machine With Mold

Crankshafts are all high-quality crankshafts made of 42CRMo steel after high temperature forging. the surface is quite smooth. so that make sure the lower friction resistance , and the lower noise. It is lubricated. The press work more smooth.

40T Angle Code Production Line Servo Feeder Punching Machine With Mold

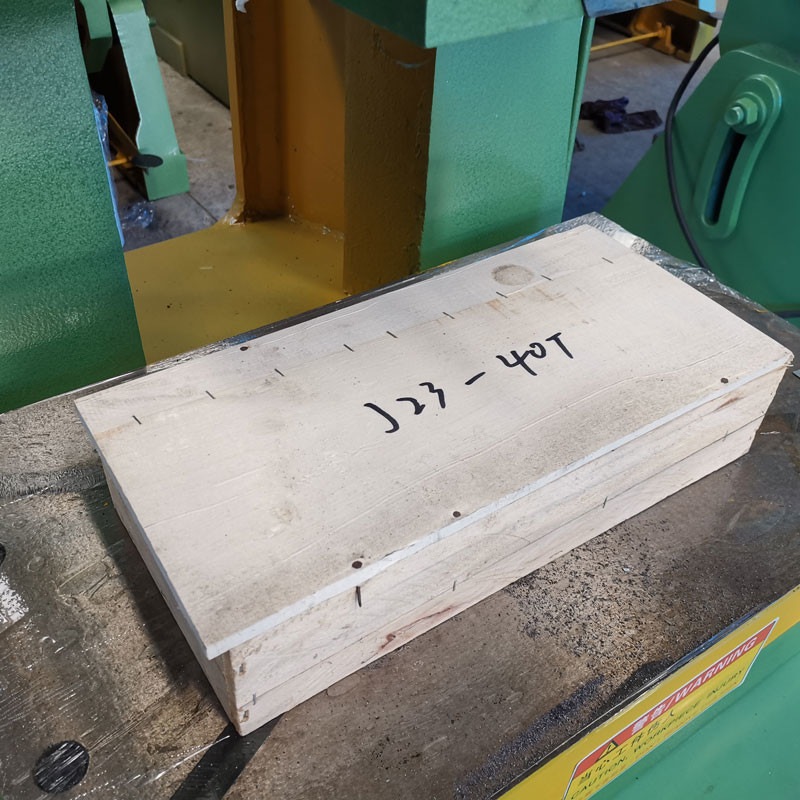

Toolkit

40T Angle Code Production Line Servo Feeder Punching Machine With Mold

Warning sign

Both-hands operation buttons to ensure the operators' safety.

40T Angle Code Production Line Servo Feeder Punching Machine With Mold

T type slot, easy to install and uninstall molds,It is firmly fixed and will not move.Table size can be customized.

40T Angle Code Production Line Servo Feeder Punching Machine With Mold

Servo feeder

40T Angle Code Production Line Servo Feeder Punching Machine With Mold

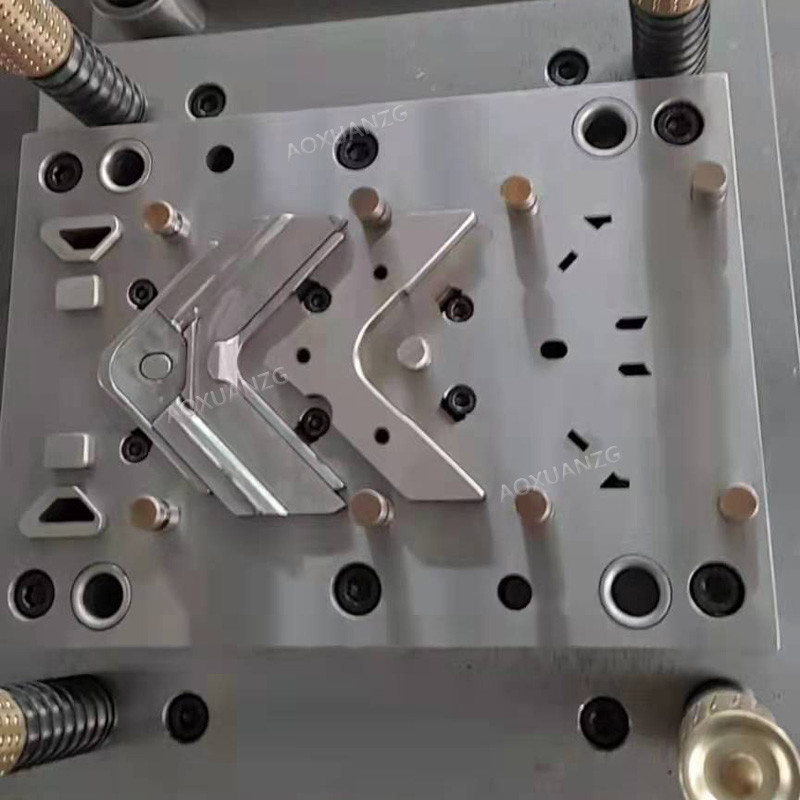

Angle code mold

40T Angle Code Production Line Servo Feeder Punching Machine With Mold

Our Service

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

FAQ:
1. Are you the manufacture? Can we visit your factory?
We are manufacturer and we are located in Anhui,China. And we have our own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.
2. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
3. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
4,Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide. And we can give you technical guidance.
Our technical staff can go abroad to provide you with technical guidance.
5. How long is your warranty?
13 months free warranty, life-long maintenance.
6. Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
For more information, please contact me (^o^)/~
40T Angle Code Production Line Servo Feeder Punching Machine With Mold
